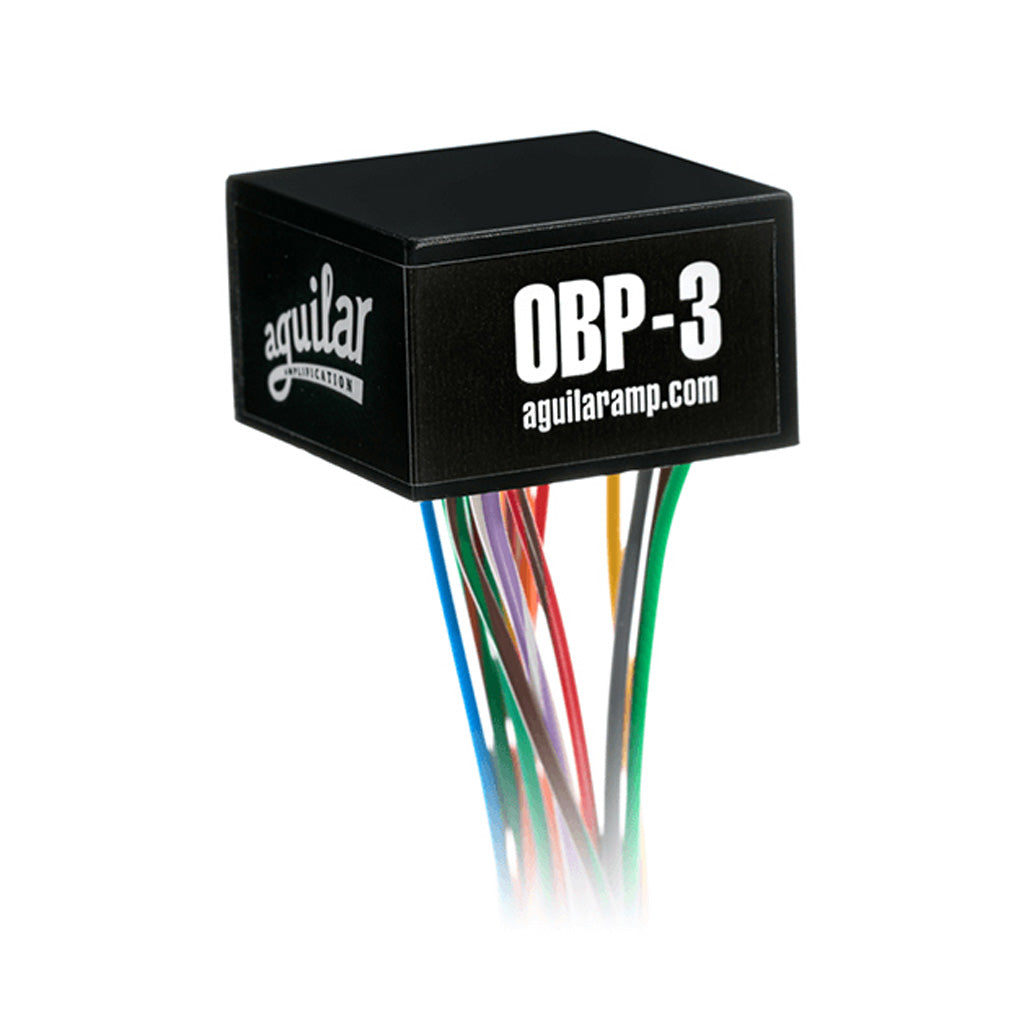

Name: Aguilar OBP-3TK Three Band On-Board Bass Preamp Kit
Brand: Aguilar
SKU: A03-OBP3TKSET
Price: 779.0 MYR
Availability: OutOfStock

Aguilar OBP-3TK Three Band On-Board Bass Preamp Kit

(0)

View
All 1

Aguilar OBP-3TK Three Band On-Board Bass Preamp Kit

Sorry, this product is currently unavailable.

We’re still waiting for an expected delivery date on this product. Please contact us to place a pre-order or to see if we have a B-Stock or an alternative available.

NEED HELP?

Related Products

About This Product

The OBP-3 is Aguilar’s most flexible onboard preamp design, providing +/-18dB of cut and boost at 40Hz, +/- 16dB of cut and boost at either 400Hz or 800Hz and +/- 16dB of treble cut and boost at 6.5 kHz. The OBP-3 has multiple wiring options and can be wired with either a push/pull pot OR mini-toggle for midrange frequency selection.

Features:

Low noise discrete FET input stage,
Centre detent 50 K linear pots
Dual concentric pot
324 hours of battery life

Bass control: plus/minus 18 dB @ 40 Hz
Mid control: plus/minus 16 dB @ 400Hz or 800 Hz. User-selectable frequency centre
Treble control: plus/minus 16 dB @ 6.5 kHz
Input impedance: 1 megohm
Output impedance: 100 ohms 9 or 18 volts operation
Distortion: .019 into 10k ohm load
Noise: -95 dBm unweighted
Wire lead length: 6.50 inches
Includes: Separate Treble, Mid, and Bass pots, and black mini-toggle switch for Midrange frequency selection
Dimensions: 0.98″ (W) x 0.98″ (L) x 0.59″ (D)
