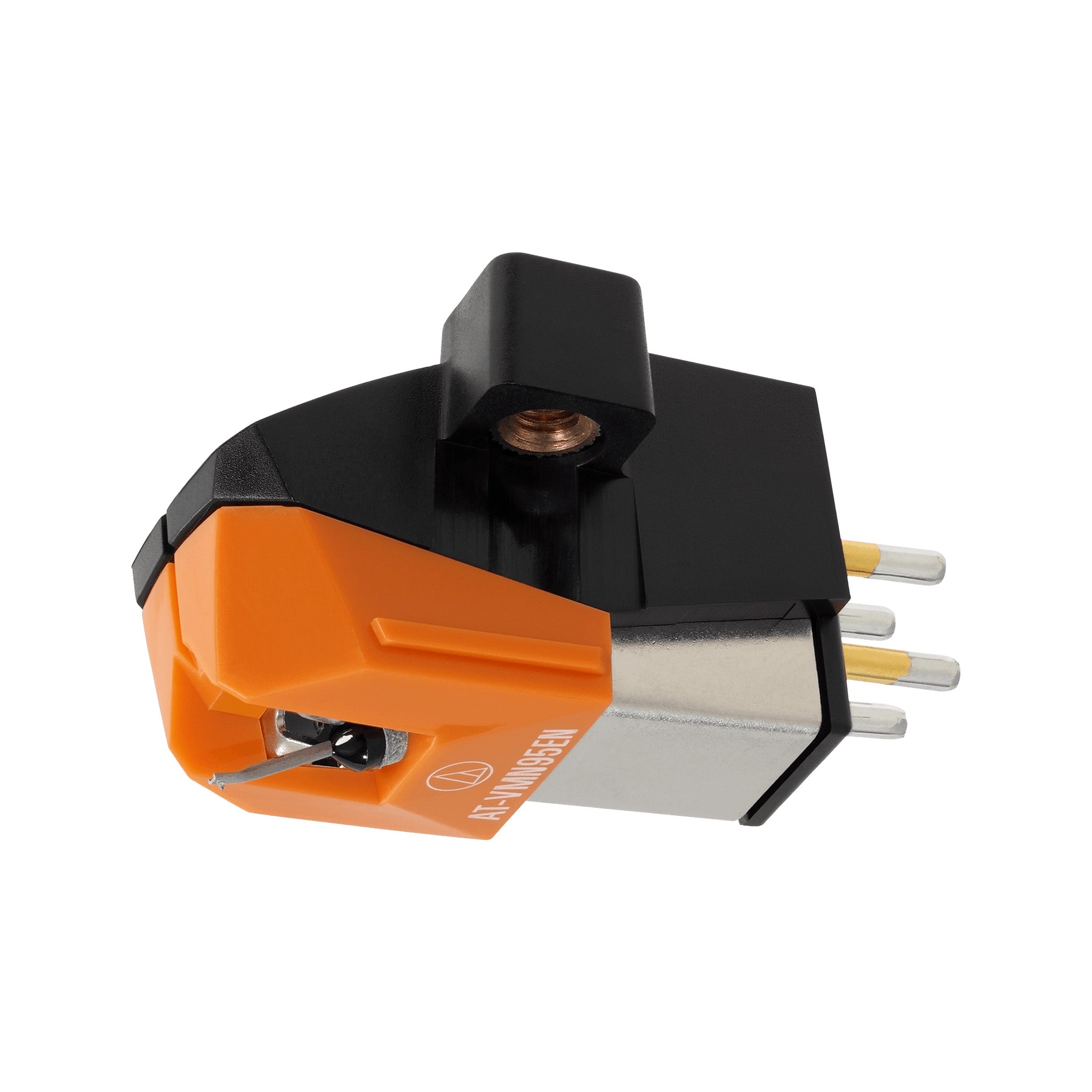

Audio-Technica Dual Moving Magnet Cartridge AT-VM95EN

(2)

View
All 4

Audio-Technica Dual Moving Magnet Cartridge AT-VM95EN

Sorry, this product is currently unavailable.

We’re still waiting for an expected delivery date on this product. Please contact us to place a pre-order or to see if we have a B-Stock or an alternative available.

NEED HELP?

Related Products

About This Product

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical nude stylus
Aluminium cantilever
Durable low-resonance polymer housing
Threaded inserts in the cartridge body enable the cartridge to be mounted to the headshell with just two screws – no nuts required
Compatible with any AT-VMN95 replacement stylus

Read More

Specifications

Frequency Response: 20-23,000 Hz
Channel Separation: 22 (dB at 1 kHz)
Vertical Tracking Angle: 23°
Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
Stylus Construction: Nude round shank
Recommended Load Impedance: 47,000 ohms
Coil Impedance: 3.3 k ohms (1 kHz)
DC Resistance: 485 ohms
Coil Inductance: 550 mH (1 kHz)
Output Voltage: 3.5 mV (1 kHz, 5 cm/sec.)
Output Channel Balance: 2.0 dB (1 kHz)
Stylus Shape: 0.3 x 0.7 mil elliptical
Cantilever: Aluminium pipe
Static Compliance: 17 x 10 – 6 cm / dyne
Dynamic Compliance: 7 x 10 – 6 cm / dyne (100 Hz)
Mounting: Half-inch
Cartridge Weight: 6.1g
Mounting Feature: Half-inch mount
Recommended Load Capacitance: 100 to 200 pF
Replacement Stylus: AT-VMN95E
Stylus Size: 0.3 x 0.7 mil
Type: VM Stereo Dual Magnet
Wire Used for Coil: T.P. Copper
Accessories Included: Two 11 mm Installation Screws, Two 8 mm Installation Screws, Two Washers
