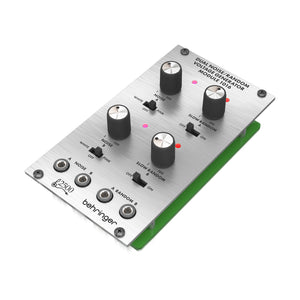

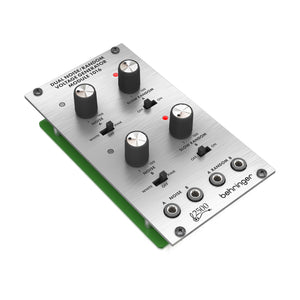

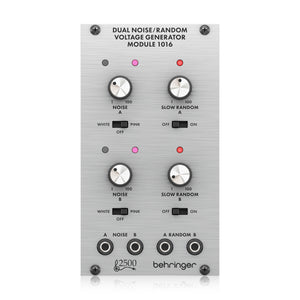

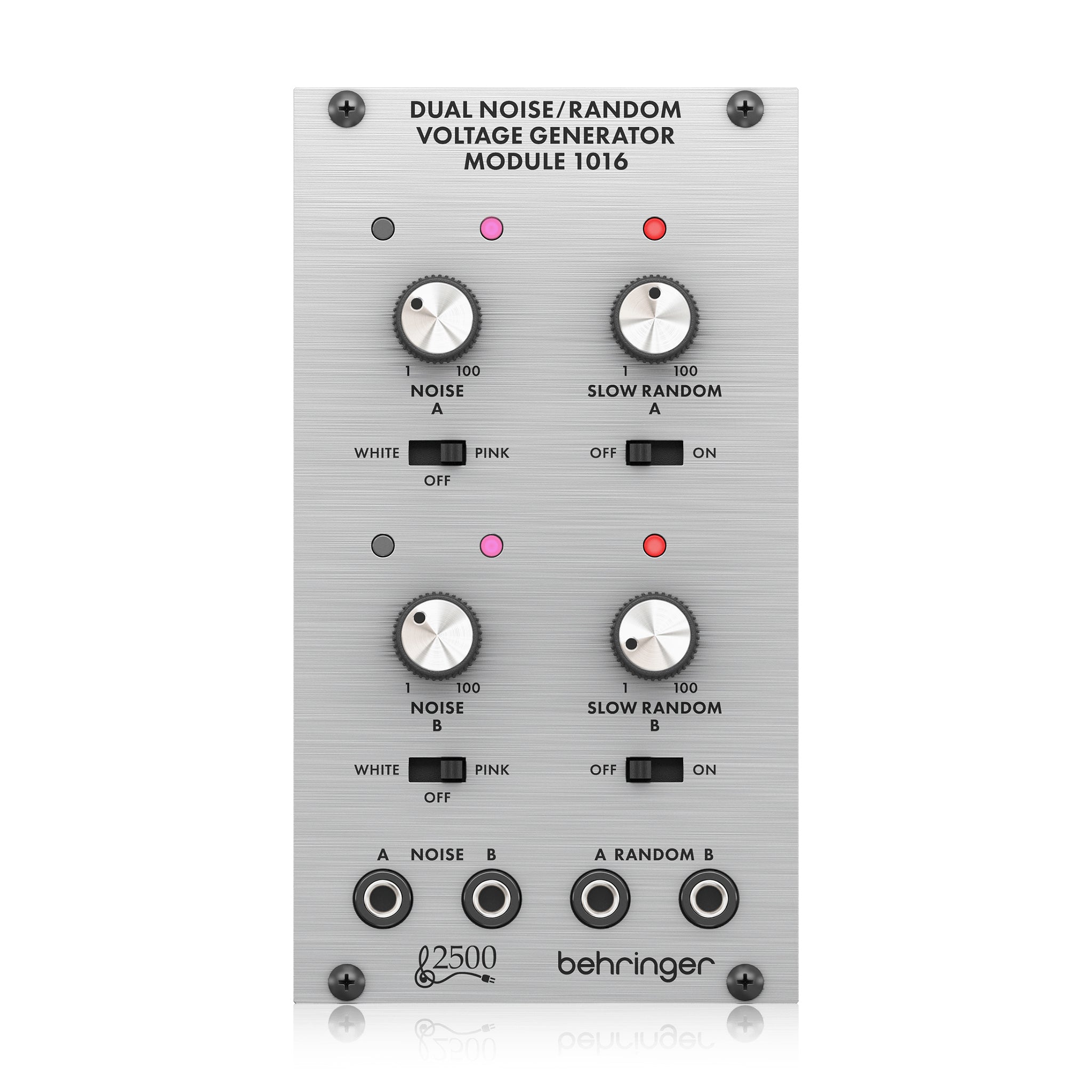

An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the DUAL NOISE/RANDOM VOLTAGE MODULE 1016 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Features:

• Classic 1016 analog dual noise and random voltage generator module from the '70s
• Authentic reproduction of the circuitry from the "2500" Series
• The module consists of 2 identical white/pink noise and Random Voltage generators
• The noise outputs are generated from 2 independent transistor noise sources
• Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
• 2 output attenuators enable the outputs to be reduced in volume
• White or Pink Noise are selectable via slide switch and LED indication
• Random Voltage can be switched on and off via slide switch with LED indication
• White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
• Slow random voltages feature peak signal power between 1 Hz and 10 Hz
• Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V
