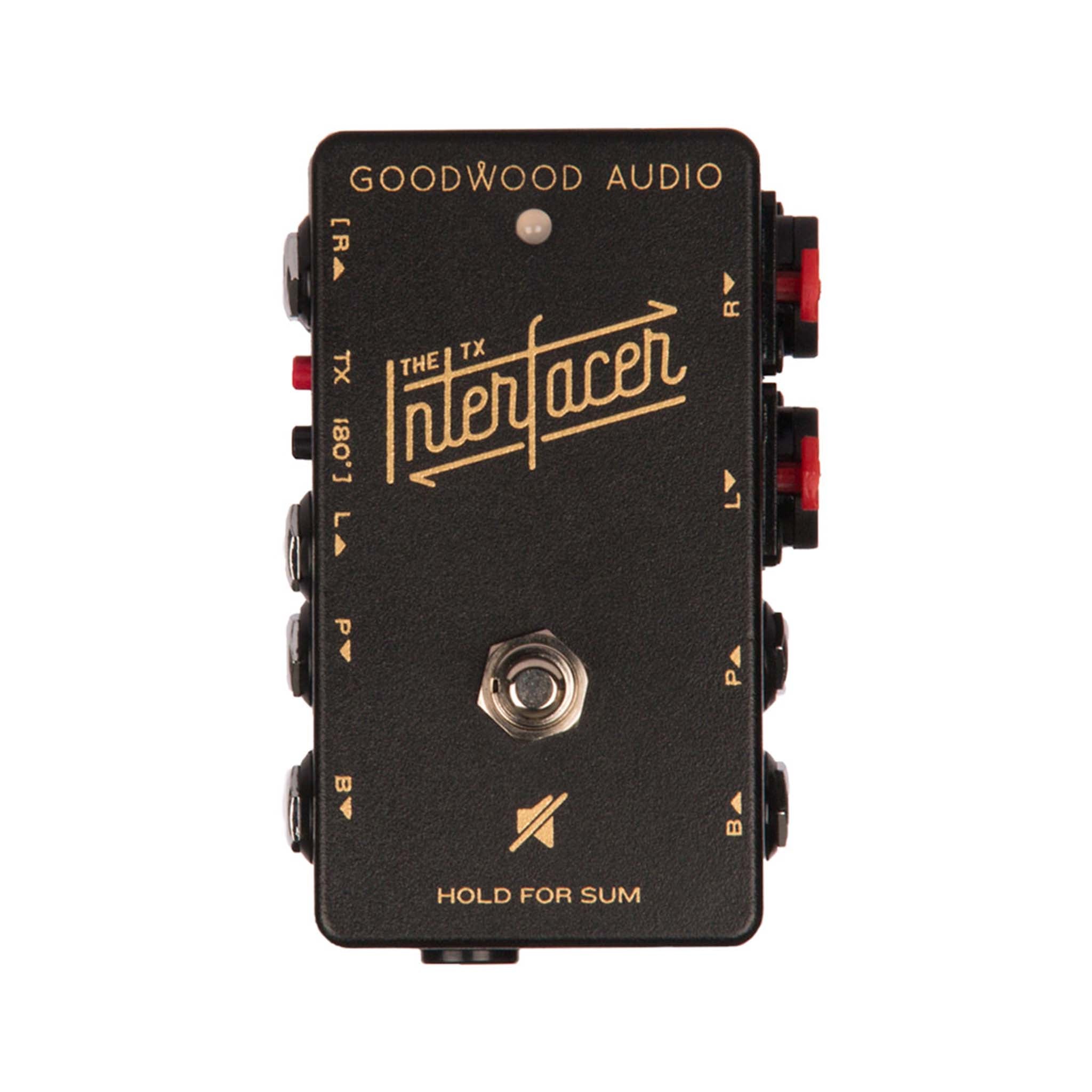

The TX Interfacer is designed to take care of all your input, tuning, muting, stereo summing, isolating, phase correcting and output needs. Hit the footswitch on the pedal to mute your signal before it reaches your amps. No matter what craziness is happening on your board, the master mute has the final say on what does or doesn’t get sent to your amp.

The TX Interfacer shares the same features (two types of summing and two types of input) as The Interfacer but with the addition of ground lift and phase correction for players that want to run more than one amp:

• Ground Lift – There are times when two amps are being used that an audible hum/buzz can be heard coming out of your amps. To safely fix this common problem, use this feature to isolate one amp from the other.
• Phase Correction – When running two amps that are out of phase with each other they are cancelling each other out, especially in the lower frequencies. With the black phase correction button you can now put two amps back in phase and working together.

Use only 9vDC centre negative plug to power The TX Interfacer.
