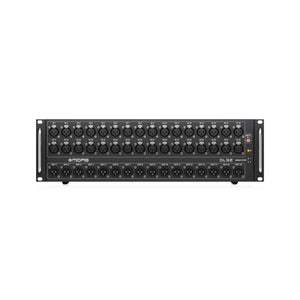

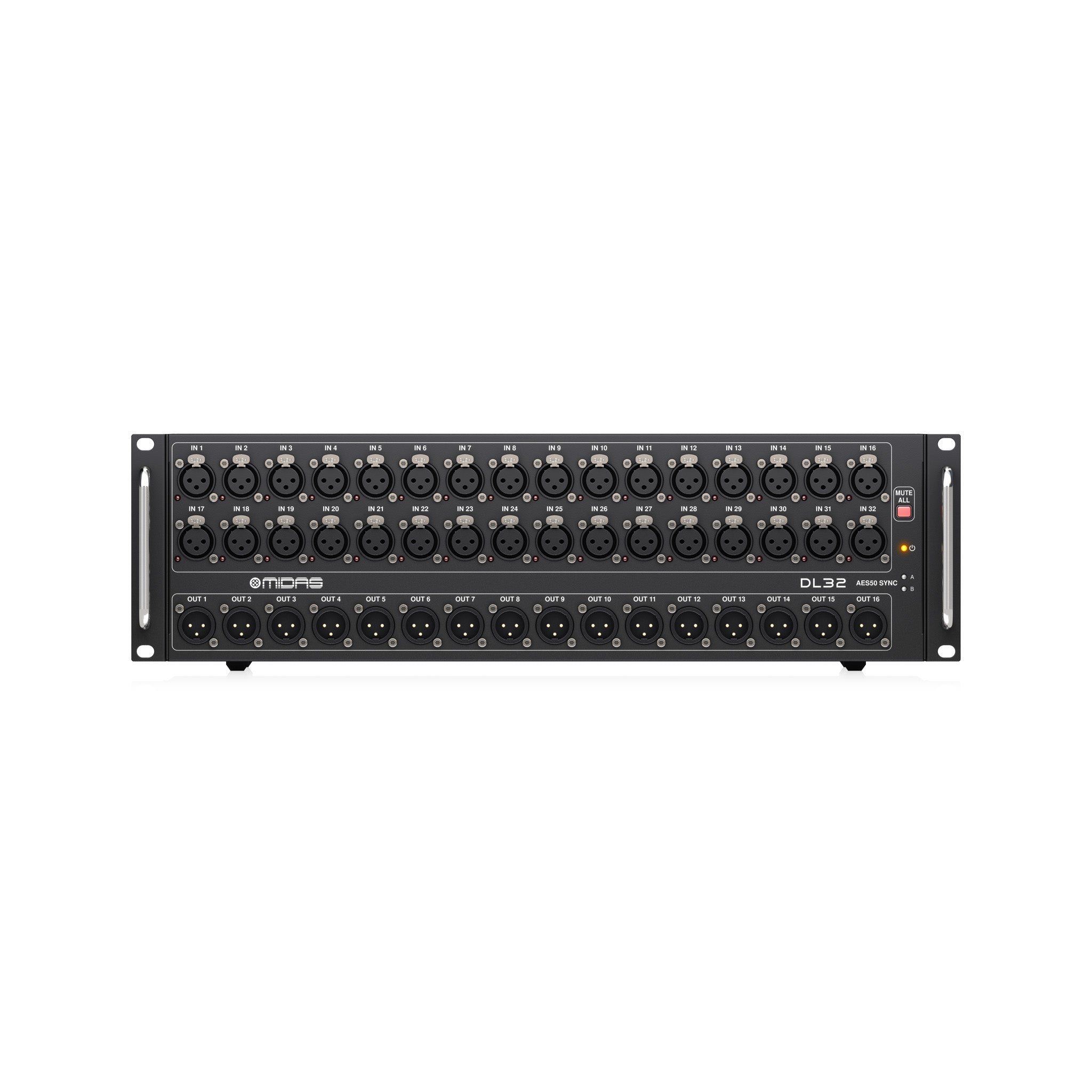

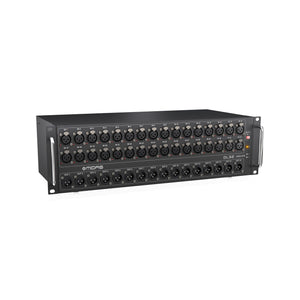

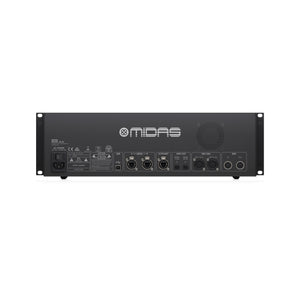

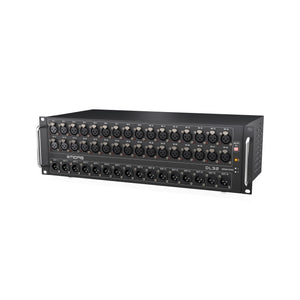

Midas DL32 32-input / 16-output Stage Box

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analogue XLR returns at the stage end – and all it takes is a single Cat 5e cable (up to 100 m / 328'). While Klark Teknik, the industry leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable

Features:

• 32 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power
• 16 electronically balanced low impedance line level outputs
• ULTRANET personal monitoring system connectivity for in-ear applications
• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability
• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes no merger or router required
• Automatic AES50 stage-split mode when connected between Midas M32 Series FOH and monitor consoles
• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK connectors
• 2 AES-3 ports (AES/EBU), for directly connecting PA system controllers with digital inputs
• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length
• Mute All function for quietly patching any inputs on stage
• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices
• Features Neutrik etherCON AES50 and ULTRANET network ports
• Rugged 3U rackmount chassis for durability in portable applications
• Auto-ranging universal switch-mode power supply
