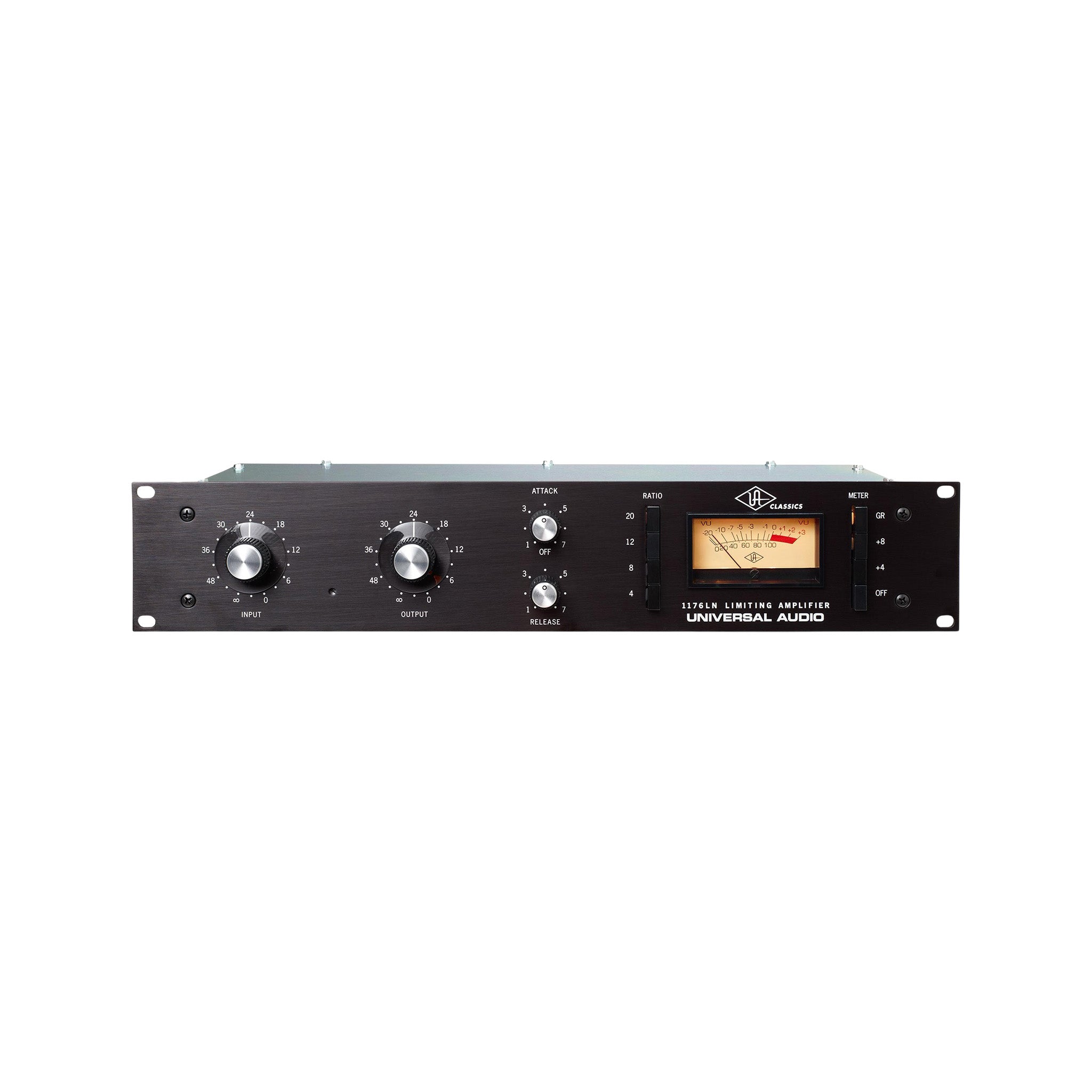

Universal Audio 1176LN Classic Limiting Amplifier
Hover over image to zoom in
Drag to rotate 360
Universal Audio 1176LN Classic Limiting Amplifier
RM16,999.00
(Incl. Taxes & Shipping Cost)
About This Product
Upon its release in 1967, the 1176 Limiting Amplifier became an instant classic because of its unique lightning-fast attack and release times, musical Class A output stage, and its wide range of sounds, ranging from subtle, near-transparent compression, to all-out drive and distortion.
Universal Audio’s 1176LN Classic Limiting Amplifier is a handbuilt, faithful reproduction of Bill Putnam Sr.’s original visionary design — an iconic piece of audio history that had a hand behind classic recordings from Led Zeppelin, The Rolling Stones, Michael Jackson, and more.
Features:
- True to the original in design, manufacturing and performance
- Modelled after 1176LN, blackface, D and E revisions
- Ultra fast attack time -20 microseconds to 800 microseconds
- Class A line-level output amplifier
- Custom built Putnam-designed output transformer
- Stereo interconnect operation
Specifications
- Input Impedance: 600 ohms, bridges-T control (floating)
- Output Load Impedance: 600 ohms, floating, damping factor 20

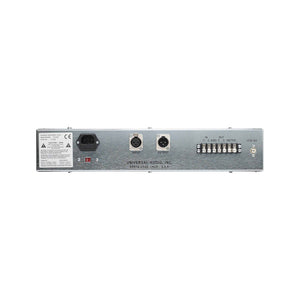

- External Connections: Jones Barrier terminals and XLR connectors
- Frequency Response: ± 1 dB 20 Hz to 20kHz
- Gain: 50 dB
- Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting
- Signal to Noise Ratio: Greater than 70 dB at +10 dBm
- Attack Time: 20 microseconds to 800 microseconds
- Release Time: 50 milliseconds to 1.1 seconds
- Meter: via 1176 SA Network accessory
- Meter: dB gain reduction and dB output
- Power Requirements: 120/240 V
- Maximum Operating Temperature: 160°F
- Dimensions: 19" Rackmount chassis, 3U
- Weight: 5 kg / 13 lbs.
